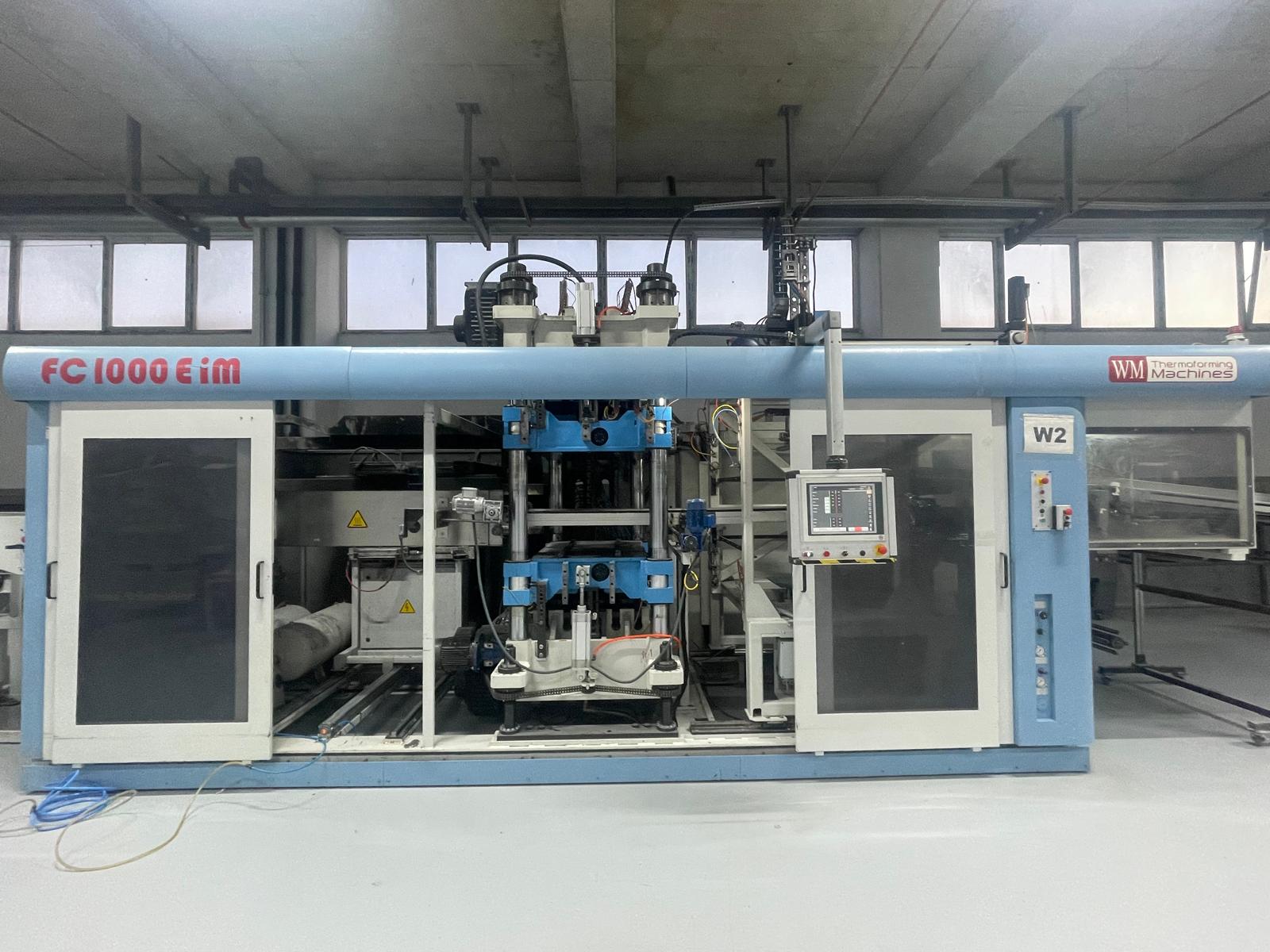

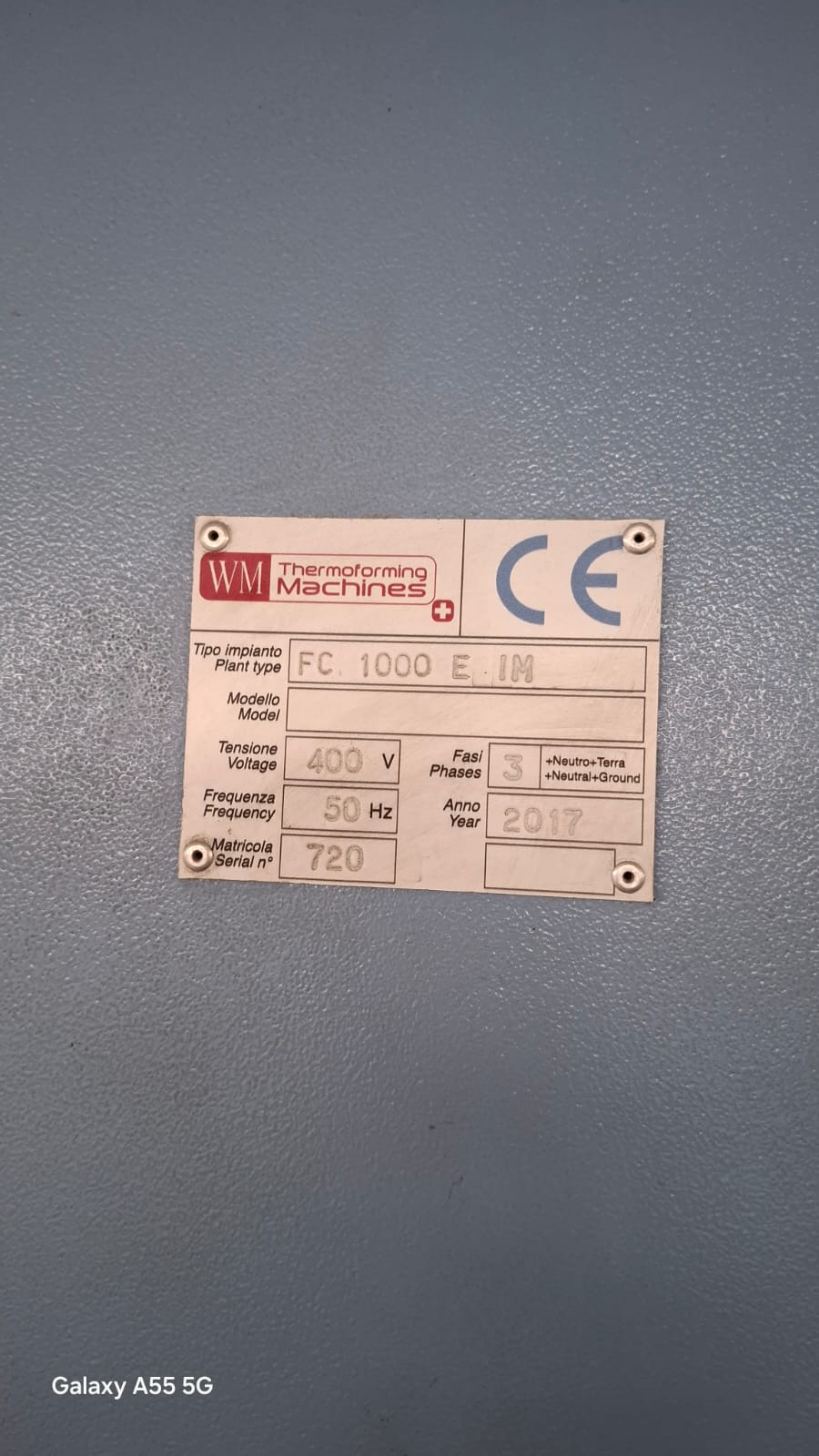

2017 WM FC 1000 E IM

equipped with:

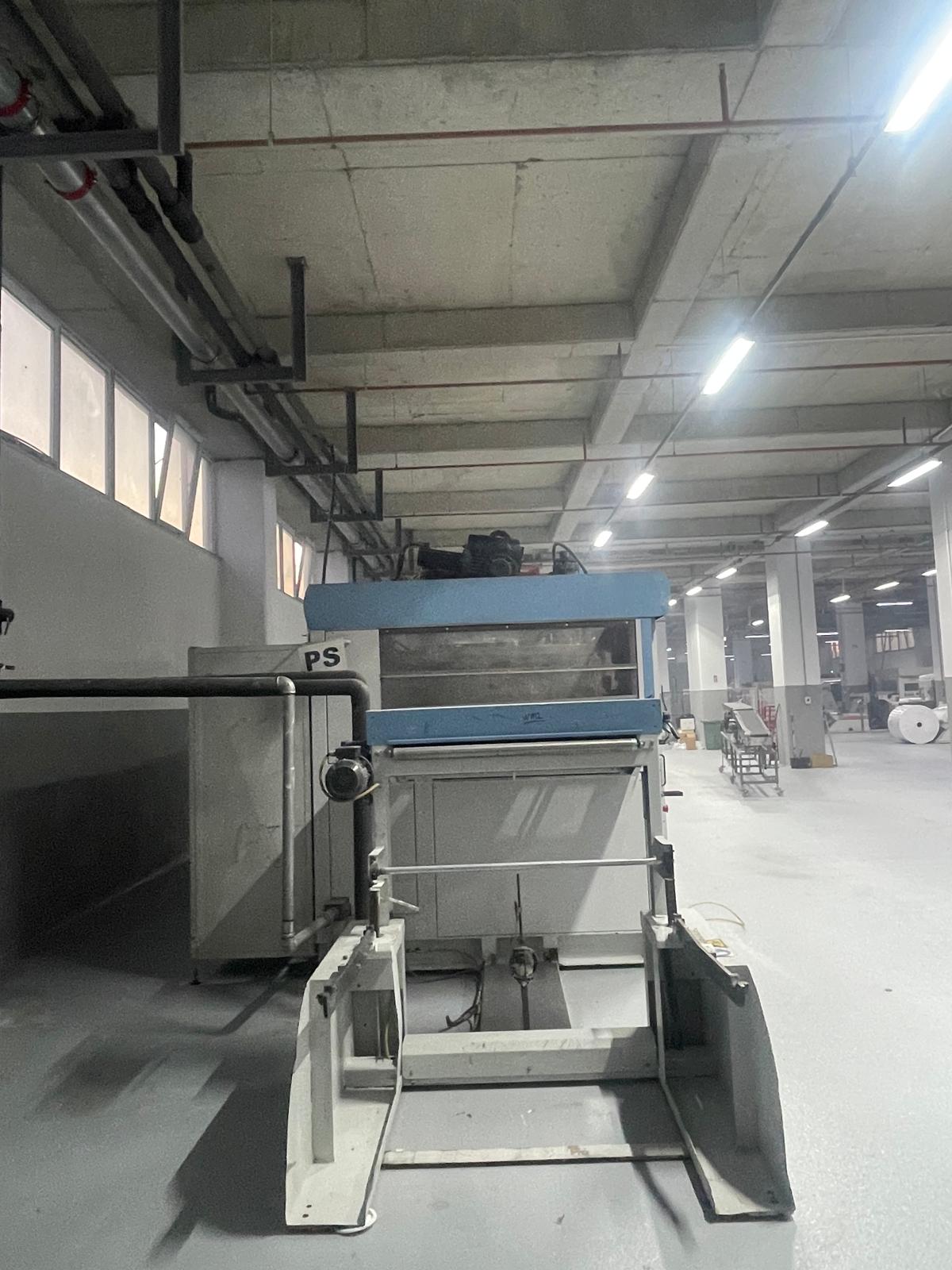

• Single reel holder unit with 2 reel holder shafts
• Automatic sheet unwinder with alarm device for sheet end
• Sheet indexing system with toothed chains pinched in the upper part of the rails electronically operated
• Adjustment of toothed chain rails width by a button control which allows the following storage of the datum and the possibility of motorised spread in one independent point
• Double heaters (upper and lower) with independent control by longitudinal rows (15 upper and 15 lower)
• On-off temperature control for 4 first transversal rows, upper and lower heaters
• On-Off valve for mould water stop with water draining device
• 4 columns forming/cutting station with clamping force of 1300 kN with double movable platens, operated by double toggle servomotors
• Valve for vacuum adjustment
• Centralized pneumatic group with air tank
• Device for the electrical adjustment of the cutting point of the forming unit upper platen
• Sheet indexing system operated by Brushless servomotor

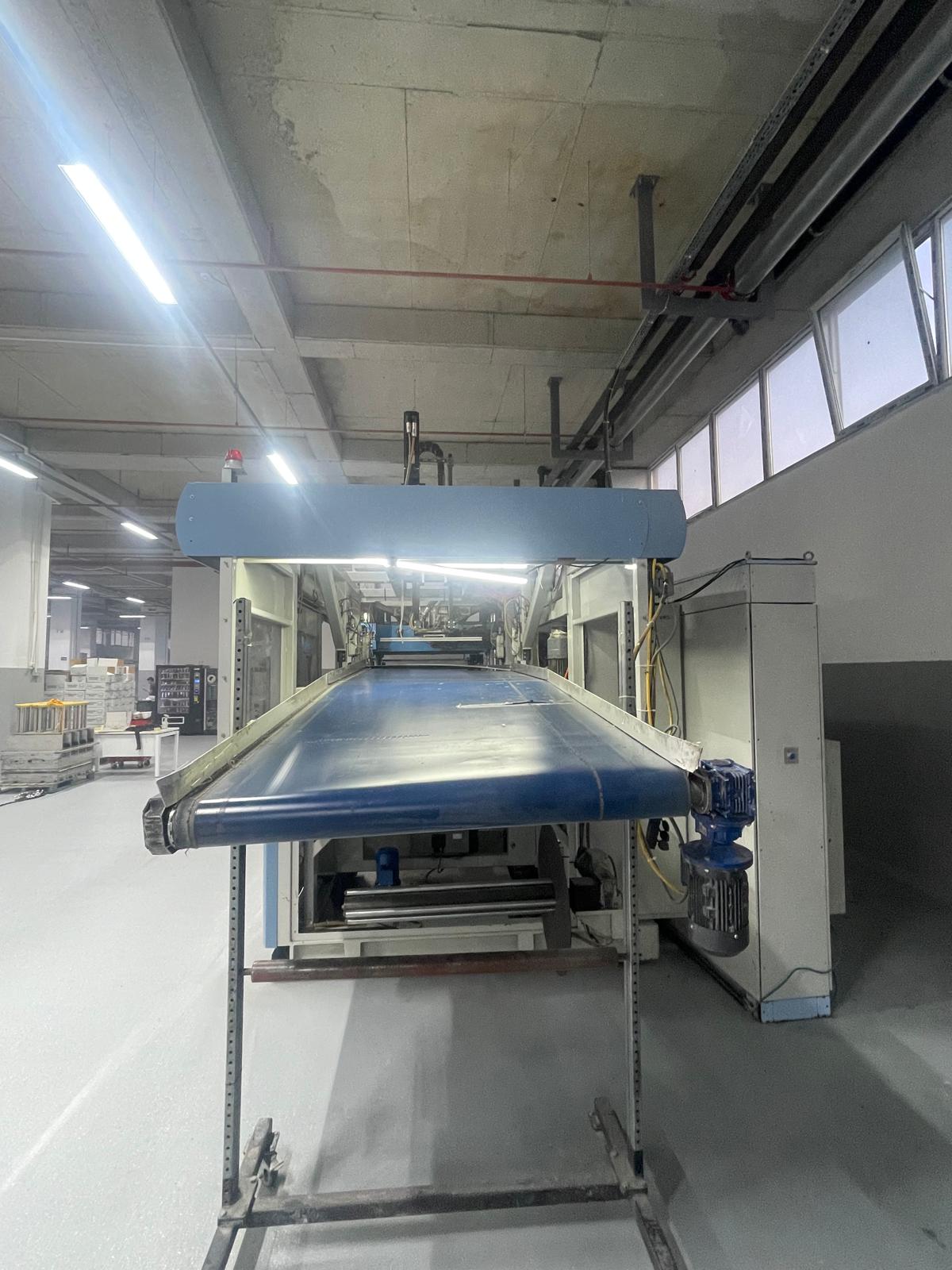

• Conveyor belt replacing tray
• Scrap rewinder
• Automatic centralized lubrication
• 150 m3/h vacuum pump with corresponding accumulator tank
• B&R microprocessor controls panel with V.D.U. display installed on a swinging arm including data memorisation on USB key
• Self-setting program for the cycle parameters
• Power safety device for main switch
• All the movable platens of the forming unit are equipped with safety fall preventing bars, controlled by electrical devices

ACCESSORIES INCLUDED:

• 178** Synchronized pneumatic clamp frame for upper/lower platens installed on movable platens
• 180 Forming and cutting force reading and control
• 184 Electric plugging system on the upper platen
• 205 Quick mould locking for forming station
• 243 Upward stacking unit with separators + 3 electric axis robot with ABC possibility (without stacker frame)
• 262 High speed remote internet connection module for after sales service
• 264 Air conditioning for control cabinet (until room temperature of 45°C)
• 269 Lamp inside the machine
